VOLTHOR ULTRA AUTOMOTIVE BATTERIES
VolThor Ultra is a battery produced using Ca/Ca expanded metal technology. It is real all rounder offering excellent power, capacity, cold start performance and reliability.
This is high quality product for vehicles of every class.
Main features:
-
Higher starting capabilities.
-
Reliable starting at extreme climatic conditions.
| Art. No. |
DIN Marking |
Short Code |
Ah (C20) |
Box Type |
EN (A) |
LxWxH (mm) |
BHD |
Layout |
Weight (kg) |
PCS/pallet (EUR/CNT) |
Remarks* |
TDS |
| 1001238 |
54506 |
VU45 |
45 |
L0 |
400 |
175x175x190 |
B13 |
0 |
10.5 |
72/120 |
K |
TDS |
| 1001264 |
54002 SMF |
VU40 |
40 |
L1B |
360 |
207x175x175 |
B13 |
0 |
10.7 |
72/120 |
SMF, H |
TDS |
| 1001273 |
54003 SMF |
VU40X |
40 |
L1B |
360 |
207x175x175 |
B13 |
1 |
10.7 |
72/120 |
SMF, H |
TDS |
| 1001265 |
54502 SMF |
VU45B |
45 |
L1B |
420 |
207x175x175 |
B13 |
0 |
11.2 |
72/120 |
SMF, H |
TDS |
| 1001239 |
54559 SMF |
VU45H |
45 |
L1 |
400 |
207x175x190 |
B13 |
0 |
11.7 |
72/100 |
SMF, H |
TDS |
| 1001240 |
55010 SMF |
VU50H |
50 |
L1 |
450 |
207x175x190 |
B13 |
0 |
12.2 |
72/100 |
SMF, H |
TDS |
| 1001277 |
55001 SMF |
VU50 |
50 |
L2B |
450 |
242x175x175 |
B13 |
0 |
12.7 |
63/108 |
SMF, H |
TDS |
| 1001267 |
55509 SMF |
VU55 |
55 |
L2B |
500 |
242x175x175 |
B13 |
0 |
13.3 |
63/108 |
SMF, H |
TDS |
| 1001278 |
55559 SMF |
VU55H |
55 |
L2 |
500 |
242x175x190 |
B13 |
0 |
13.9 |
63/90 |
SMF, H |
TDS |
| 1001288 |
56008 SMF |
VU60H |
60 |
L2 |
600 |
242x175x190 |
B13 |
0 |
14.4 |
63/90 |
SMF, H |
TDS |
| 1001257 |
56013 SMF |
VU60HX |
60 |
L2 |
600 |
242x175x190 |
B13 |
1 |
14.4 |
63/90 |
SMF, H |
TDS |
| 1001244 |
56309 SMF |
VU63 |
63 |
L3B |
600 |
278x175x175 |
B13 |
0 |
15.5 |
51/80 |
SMF, H, HD |
TDS |
| 1001246 |
57309 SMF |
VU73 |
73 |
L3B |
630 |
278x175x175 |
B13 |
0 |
15.9 |
51/80 |
SMF, H, HD |
TDS |
| 1001268 |
56638 SMF |
VU66H |
66 |
L3 |
600 |
278x175x190 |
B13 |
0 |
16.1 |
51/80 |
SMF, H, HD |
TDS |
| 1001270 |
57412 SMF |
VU74H |
74 |
L3 |
680 |
278x175x190 |
B13 |
0 |
17.2 |
51/80 |
SMF, H, HD |
TDS |
| 1001259 |
57413 SMF |
VU74HX |
74 |
L3 |
680 |
278x175x190 |
B13 |
1 |
17.2 |
51/80 |
SMF, H, HD |
TDS |
| 1001248 |
59249 SMF |
VU92H |
92 |
L4 |
800 |
315x175x190 |
B13 |
0 |
20.0 |
42/60 |
SMF, H, HD |
TDS |
| 1001281 |
59220 SMF |
VU92 |
92 |
L5B |
800 |
353x175x175 |
B13 |
0 |
20.5 |
36/72 |
SMF, H, HD |
TDS |
| 1001272 |
58827 SMF |
VU88H |
88 |
L5 |
720 |
353x175x190 |
B13 |
0 |
21.0 |
36/60 |
SMF, H, HD |
TDS |
| 1001275 |
60038 SMF |
VU10H |
100 |
L5 |
850 |
353x175x190 |
B13 |
0 |
22.4 |
36/60 |
SMF, H, HD |
TDS |
| 1001237 |
53520 SMF |
VU35J |
35 |
B19 |
270 |
196x128x202/223 |
B0 |
0 |
9.4 |
96/128 |
SMF, H, JIS |
TDS |
| 1001252 |
53522 SMF |
VU35JX |
35 |
B19 |
270 |
196x128x202/223 |
B0 |
1 |
9.4 |
96/128 |
SMF, H, JIS |
TDS |
| 1001291 |
53521 SMF |
VU35JP |
35 |
B19 |
270 |
196x134x202/223 |
B01 |
0 |
9.4 |
96/128 |
SMF, H, JIS |
TDS |
| 1001286 |
54520 SMF |
VU45J |
45 |
B19 |
360 |
196x134x202/223 |
B01 |
0 |
10.6 |
96/128 |
SMF, H, JIS, A |
TDS |
| 1001253 |
54522 SMF |
VU45JX |
45 |
B19 |
360 |
196x134x202/223 |
B01 |
1 |
10.6 |
96/128 |
SMF, H, JIS, A |
TDS |

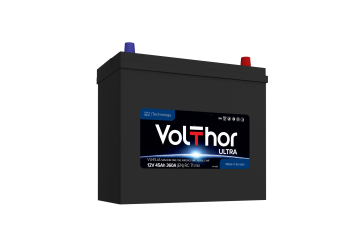

| 1001266 |
54523/84 SMF |
VU45JA |
45 |
B24 |
360 |
236x128x202/223 |
B0 |
0 |
11.9 |
72/96 |
SMF, H, JIS, A |
TDS |
| 1001254 |
54524/51 SMF |
VU45JAX |
45 |
B24 |
360 |
236x128x202/223 |
B0 |
1 |
11.9 |
72/96 |
SMF, H, JIS, A |
TDS |

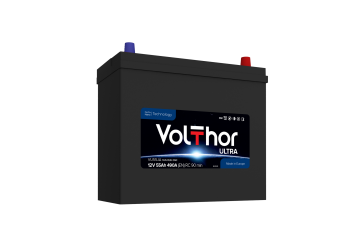

| 1001242 |
55523/84 SMF |
VU55JA |
55 |
B24 |
490 |
236x128x202/223 |
B0 |
0 |
13.5 |
72/96 |
SMF, H, JIS, A |
TDS |

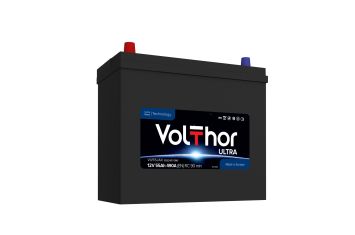

| 1001255 |
55524/51 SMF |
VU55JAX |
55 |
B24 |
490 |
236x128x202/223 |
B0 |
1 |
13.5 |
72/96 |
SMF, H, JIS, A |
TDS |

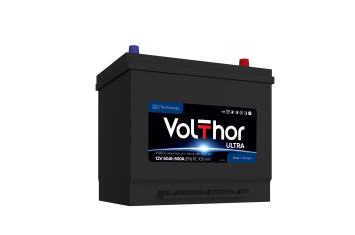

| 1001294 |
56068 SMF |
VU60J |
60 |
D23 |
600 |
230x173x200/220 |
B01 |
0 |
14.9 |
60/90 |
SMF, ME, H |
TDS |
| 1001282 |
56069 SMF |
VU60JX |
60 |
D23 |
600 |
230x173x200/220 |
B01 |
1 |
14.9 |
60/90 |
SMF, ME, H |
TDS |
| 1001245 |
56568 SMF |
VU65J |
65 |
D23 |
650 |
230x173x200/220 |
B01 |
0 |
15.5 |
60/90 |
SMF, ME, H |
TDS |

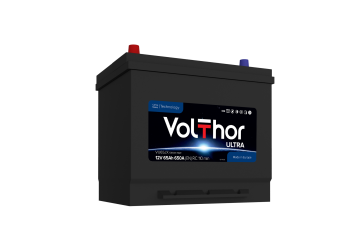

| 1001258 |
56569 SMF |
VU65JX |
65 |
D23 |
600 |
230x173x200/220 |
B01 |
1 |
15.5 |
60/90 |
SMF, ME, H |
TDS |
| 1001269 |

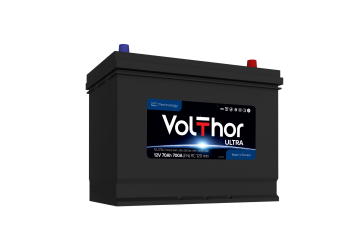

57029 SMF |
VU70J |
70 |
D26 |
700 |
259x175x200/221 |
B1 |
0 |
17.3 |
48/80 |
SMF, ME, H |
TDS |
| 1001274 |
57024 SMF |
VU70JX |
70 |
D26 |
700 |
259x175x200/221 |
B1 |
1 |
17.3 |
48/80 |
SMF, ME, H |
TDS |
| 1001271 |
57529 SMF |
VU75J |
75 |
D26 |
740 |
259x175x200/221 |
B1 |
0 |
17.8 |
48/80 |
SMF, ME, H |
TDS |
| 1001260 |
57524 SMF |
VU75JX |
75 |
D26 |
740 |
259x175x200/221 |
B1 |
1 |
17.8 |
48/80 |
SMF, ME, H |
TDS |

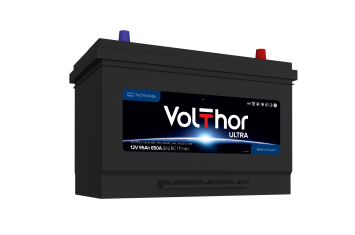

| 1001249 |
59518 SMF |
VU95J |
95 |
D31 |
850 |
306x173x200/221 |
B01 |
0 |
20.9 |
42/70 |
SMF, ME, H |
TDS |
| 1001261 |
59519 SMF |
VU95JX |
95 |
D31 |
850 |
306x173x200/221 |
B01 |
1 |
20.9 |
42/70 |
SMF, ME, H |
TDS |

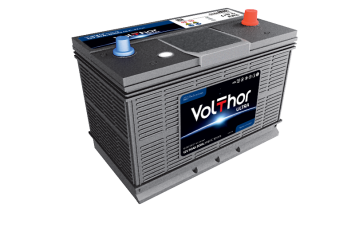

| 1001290 |
BCI 31P SMF |
VU90BCIP |
90 |
BCI 31 |
800 |
330x173x218/239 |
B1 |
0 |
23.4 |
42/60 |
SMF, ME, H, HD, P |
TDS |
| 1001283 |
BCI 31S SMF |
VU100BCIS |
100 |
BCI 31 |
900 |
330x173x218/239 |
B1 |
0 |
24.3 |
42/60 |
SMF, ME, H, HD, S |
TDS |

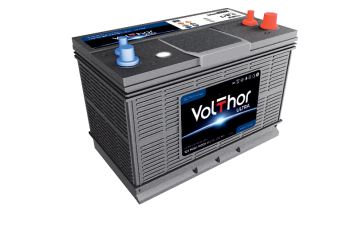

| 1001293 |
BCI 31S SMF-D |
VU110BCID |
110 |
BCI 31 |
1000 |
330x173x218/237 |
B1 |
0 |
26.2 |
42/60 |
SMF, ME, H, HD, DP |
TDS |
Remarks: A - Pole Adapter, AGM - Absorbed Glass Mat, DP - Dual Poles, EMS - Electrolyte Mixing System, H - Handle, HD - Heavy Duty, JIS - Japanese Poles, K - Kamina, KH - Kamina Handle, M - Lawn Mower Battery, ME - Magic Eye, P - Post Poles, S - Stud Poles, SMF - Maintenance Free = Sealed

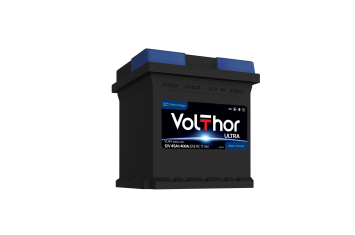

VOLTHOR ULTRA
54506
Ident Nr.: 1001238
Capacity (Ah): 45
EN (A): 400
Dimensions (mm): 175x175x190
Box Type: L0
DIN Marking: 54506
Short Code: VU45
VOLTHOR ULTRA
54002 SMF
Ident Nr.: 1001264
Capacity (Ah): 40
EN (A): 360
Dimensions (mm): 207x175x175
Box Type: L1B
DIN Marking: 54002 SMF
Short Code: VU40
VOLTHOR ULTRA

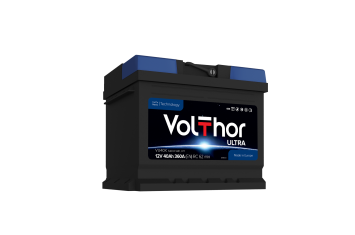

54003 SMF
Ident Nr.: 1001273
Capacity (Ah): 40
EN (A): 360
Dimensions (mm): 207x175x175
Box Type: L1B
DIN Marking: 54003 SMF
Short Code: VU40X
VOLTHOR ULTRA
54502 SMF
Ident Nr.: 1001265
Capacity (Ah): 45
EN (A): 420
Dimensions (mm): 207x175x175
Box Type: L1B
DIN Marking: 54502 SMF
Short Code: VU45B
VOLTHOR ULTRA
54559 SMF
Ident Nr.: 1001239
Capacity (Ah): 45
EN (A): 400
Dimensions (mm): 207x175x190
Box Type: L1
DIN Marking: 54559 SMF
Short Code: VU45H

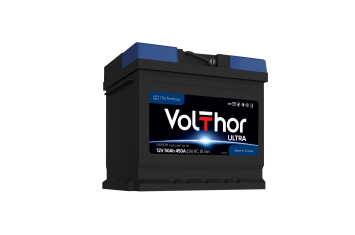

VOLTHOR ULTRA
55010 SMF
Ident Nr.: 1001240
Capacity (Ah): 50
EN (A): 450
Dimensions (mm): 207x175x190
Box Type: L1
DIN Marking: 55010 SMF
Short Code: VU50H

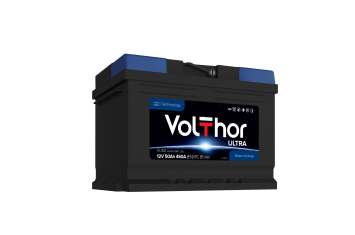

VOLTHOR ULTRA
55001 SMF
Ident Nr.: 1001277
Capacity (Ah): 50
EN (A): 450
Dimensions (mm): 242x175x175
Box Type: L2B
DIN Marking: 55001 SMF
Short Code: VU50
VOLTHOR ULTRA
55509 SMF
Ident Nr.: 1001267
Capacity (Ah): 55
EN (A): 500
Dimensions (mm): 242x175x175
Box Type: L2B
DIN Marking: 55509 SMF
Short Code: VU55

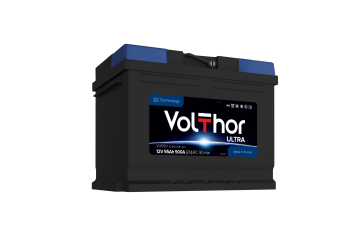

VOLTHOR ULTRA
55559 SMF
Ident Nr.: 1001278
Capacity (Ah): 55
EN (A): 500
Dimensions (mm): 242x175x190
Box Type: L2
DIN Marking: 55559 SMF
Short Code: VU55H
VOLTHOR ULTRA
56008 SMF
Ident Nr.: 1001288
Capacity (Ah): 60
EN (A): 600
Dimensions (mm): 242x175x190
Box Type: L2
DIN Marking: 56008 SMF
Short Code: VU60H
VOLTHOR ULTRA
56013 SMF
Ident Nr.: 1001257
Capacity (Ah): 60
EN (A): 600
Dimensions (mm): 242x175x190
Box Type: L2
DIN Marking: 56013 SMF
Short Code: VU60HX
VOLTHOR ULTRA
56309 SMF
Ident Nr.: 1001244
Capacity (Ah): 63
EN (A): 600
Dimensions (mm): 278x175x175
Box Type: L3B
DIN Marking: 56309 SMF
Short Code: VU63

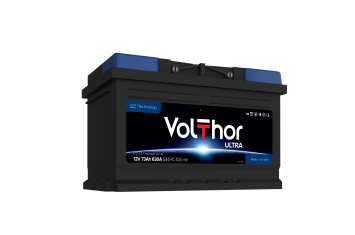

VOLTHOR ULTRA
57309 SMF
Ident Nr.: 1001246
Capacity (Ah): 73
EN (A): 630
Dimensions (mm): 278x175x175
Box Type: L3B
DIN Marking: 57309 SMF
Short Code: VU73
VOLTHOR ULTRA
56638 SMF
Ident Nr.: 1001268
Capacity (Ah): 66
EN (A): 600
Dimensions (mm): 278x175x190
Box Type: L3
DIN Marking: 56638 SMF
Short Code: VU66H

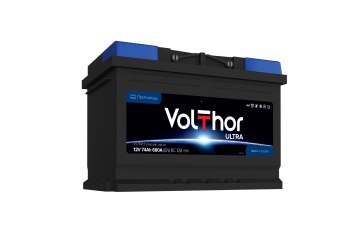

VOLTHOR ULTRA
57412 SMF
Ident Nr.: 1001270
Capacity (Ah): 74
EN (A): 680
Dimensions (mm): 278x175x190
Box Type: L3
DIN Marking: 57412 SMF
Short Code: VU74H
VOLTHOR ULTRA
57413 SMF
Ident Nr.: 1001259
Capacity (Ah): 74
EN (A): 680
Dimensions (mm): 278x175x190
Box Type: L3
DIN Marking: 57413 SMF
Short Code: VU74HX

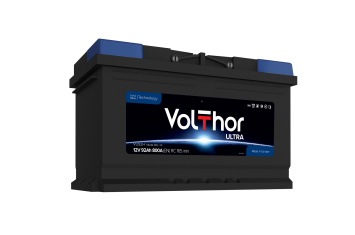

VOLTHOR ULTRA
59249 SMF
Ident Nr.: 1001248
Capacity (Ah): 92
EN (A): 800
Dimensions (mm): 315x175x190
Box Type: L4
DIN Marking: 59249 SMF
Short Code: VU92H

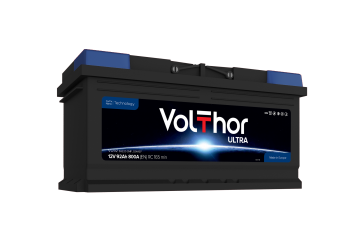

VOLTHOR ULTRA
59220 SMF
Ident Nr.: 1001281
Capacity (Ah): 92
EN (A): 800
Dimensions (mm): 353x175x175
Box Type: L5B
DIN Marking: 59220 SMF
Short Code: VU92

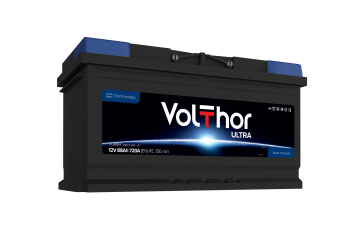

VOLTHOR ULTRA
58827 SMF
Ident Nr.: 1001272
Capacity (Ah): 88
EN (A): 720
Dimensions (mm): 353x175x190
Box Type: L5
DIN Marking: 58827 SMF
Short Code: VU88H

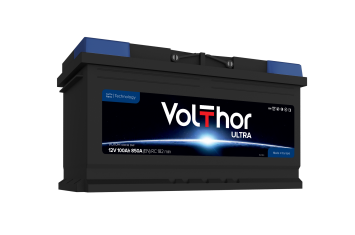

VOLTHOR ULTRA
60038 SMF
Ident Nr.: 1001275
Capacity (Ah): 100
EN (A): 850
Dimensions (mm): 353x175x190
Box Type: L5
DIN Marking: 60038 SMF
Short Code: VU10H

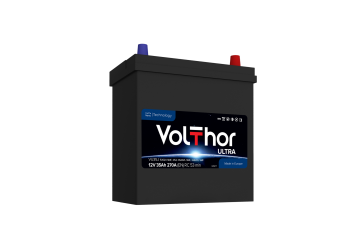

VOLTHOR ULTRA
53520 SMF
Ident Nr.: 1001237
Capacity (Ah): 35
EN (A): 270
Dimensions (mm): 196x128x202/223
Box Type: B19
DIN Marking: 53520 SMF
Short Code: VU35J
VOLTHOR ULTRA
53522 SMF
Ident Nr.: 1001252
Capacity (Ah): 35
EN (A): 270
Dimensions (mm): 196x128x202/223
Box Type: B19
DIN Marking: 53522 SMF
Short Code: VU35JX
VOLTHOR ULTRA
53521 SMF
Ident Nr.: 1001291
Capacity (Ah): 35
EN (A): 270
Dimensions (mm): 196x134x202/223
Box Type: B19
DIN Marking: 53521 SMF
Short Code: VU35JP
VOLTHOR ULTRA
54520 SMF
Ident Nr.: 1001286
Capacity (Ah): 45
EN (A): 360
Dimensions (mm): 196x134x202/223
Box Type: B19
DIN Marking: 54520 SMF
Short Code: VU45J
VOLTHOR ULTRA
54522 SMF
Ident Nr.: 1001253
Capacity (Ah): 45
EN (A): 360
Dimensions (mm): 196x134x202/223
Box Type: B19
DIN Marking: 54522 SMF
Short Code: VU45JX
VOLTHOR ULTRA
54523/84 SMF
Ident Nr.: 1001266
Capacity (Ah): 45
EN (A): 360
Dimensions (mm): 236x128x202/223
Box Type: B24
DIN Marking: 54523/84 SMF
Short Code: VU45JA
VOLTHOR ULTRA
54524/51 SMF
Ident Nr.: 1001254
Capacity (Ah): 45
EN (A): 360
Dimensions (mm): 236x128x202/223
Box Type: B24
DIN Marking: 54524/51 SMF
Short Code: VU45JAX
VOLTHOR ULTRA
55523/84 SMF
Ident Nr.: 1001242
Capacity (Ah): 55
EN (A): 490
Dimensions (mm): 236x128x202/223
Box Type: B24
DIN Marking: 55523/84 SMF
Short Code: VU55JA
VOLTHOR ULTRA
55524/51 SMF
Ident Nr.: 1001255
Capacity (Ah): 55
EN (A): 490
Dimensions (mm): 236x128x202/223
Box Type: B24
DIN Marking: 55524/51 SMF
Short Code: VU55JAX
VOLTHOR ULTRA
56068 SMF
Ident Nr.: 1001294
Capacity (Ah): 60
EN (A): 600
Dimensions (mm): 230x173x200/220
Box Type: D23
DIN Marking: 56068 SMF
Short Code: VU60J
VOLTHOR ULTRA
56069 SMF
Ident Nr.: 1001282
Capacity (Ah): 60
EN (A): 600
Dimensions (mm): 230x173x200/220
Box Type: D23
DIN Marking: 56069 SMF
Short Code: VU60JX
VOLTHOR ULTRA
56568 SMF
Ident Nr.: 1001245
Capacity (Ah): 65
EN (A): 650
Dimensions (mm): 230x173x200/220
Box Type: D23
DIN Marking: 56568 SMF
Short Code: VU65J
VOLTHOR ULTRA
56569 SMF
Ident Nr.: 1001258
Capacity (Ah): 65
EN (A): 600
Dimensions (mm): 230x173x200/220
Box Type: D23
DIN Marking: 56569 SMF
Short Code: VU65JX
VOLTHOR ULTRA
57029 SMF
Ident Nr.: 1001269
Capacity (Ah): 70
EN (A): 700
Dimensions (mm): 259x175x200/221
Box Type: D26
DIN Marking: 57029 SMF
Short Code: VU70J
VOLTHOR ULTRA
57024 SMF
Ident Nr.: 1001274
Capacity (Ah): 70
EN (A): 700
Dimensions (mm): 259x175x200/221
Box Type: D26
DIN Marking: 57024 SMF
Short Code: VU70JX
VOLTHOR ULTRA
57529 SMF
Ident Nr.: 1001271
Capacity (Ah): 75
EN (A): 740
Dimensions (mm): 259x175x200/221
Box Type: D26
DIN Marking: 57529 SMF
Short Code: VU75J
VOLTHOR ULTRA
57524 SMF
Ident Nr.: 1001260
Capacity (Ah): 75
EN (A): 740
Dimensions (mm): 259x175x200/221
Box Type: D26
DIN Marking: 57524 SMF
Short Code: VU75JX
VOLTHOR ULTRA
59518 SMF
Ident Nr.: 1001249
Capacity (Ah): 95
EN (A): 850
Dimensions (mm): 306x173x200/221
Box Type: D31
DIN Marking: 59518 SMF
Short Code: VU95J
VOLTHOR ULTRA
59519 SMF
Ident Nr.: 1001261
Capacity (Ah): 95
EN (A): 850
Dimensions (mm): 306x173x200/221
Box Type: D31
DIN Marking: 59519 SMF
Short Code: VU95JX
VOLTHOR ULTRA
BCI 31P SMF
Ident Nr.: 1001290
Capacity (Ah): 90
EN (A): 800
Dimensions (mm): 330x173x218/239
Box Type: BCI 31
DIN Marking: BCI 31P SMF
Short Code: VU90BCIP
VOLTHOR ULTRA
BCI 31S SMF
Ident Nr.: 1001283
Capacity (Ah): 100
EN (A): 900
Dimensions (mm): 330x173x218/239
Box Type: BCI 31
DIN Marking: BCI 31S SMF
Short Code: VU100BCIS
VOLTHOR ULTRA
BCI 31S SMF-D
Ident Nr.: 1001293
Capacity (Ah): 110
EN (A): 1000
Dimensions (mm): 330x173x218/237
Box Type: BCI 31
DIN Marking: BCI 31S SMF-D
Short Code: VU110BCID
