TAB STATIONARY BATTERIES

TAB STATIONARY CELLS AND BLOCKS



Let us lead you into the world of everlasting energy and introduce you with OPzS stationary blocks and cells produced in the conventional lead-acid technology.

Stationary batteries of the OPzS type are intended for the supply of telecommunication facilities, computers, emergency lightning, alarm, control and monitoring systems in power plants and distribution stations, at railway stations, airports etc. Due to their extremely low self- discharging they are suitable for plants supplied by solar cells.

The batteries are distinguished for:

  • high capacity,
  • long life time,
  • reduced maintenance,
  • low self-discharging,
  • quick and simple acid level control,
  • economical water consumption,
  • appropriate dimensions and weight,
  • the lowest and constant maintenance current.

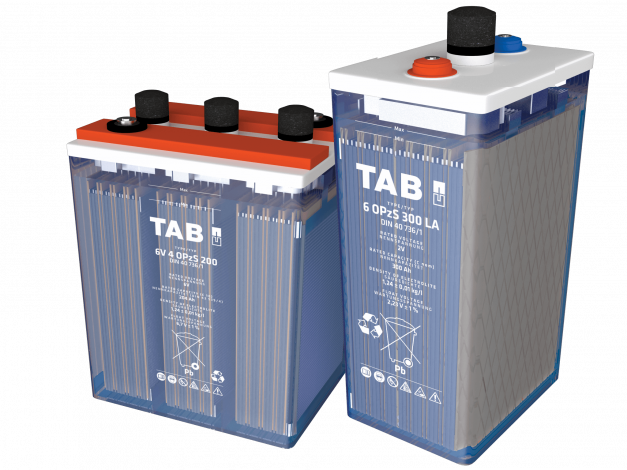

Portfolio Image
VIEW CATALOGUE

OPzS BLOCKS

UF_V/Cell 1,80 1,77 1,75 1,67 EN/IEC 60896-11 Dimensions Weight
Discharging time (h) 10 5 3 1 Ri Isc L W H with acid dry
Type Ah Ah Ah Ah mΩ A mm mm mm kg kg
12V 1 OPzS 50 51.0 40.9 38.0 28.4 20.00 613 272 205 392 39 26
12V 2 OPzS 100 103.0 81.8 75.7 56.7 9.30 1290 272 205 392 50 38
12V 3 OPzS 150 154.0 122.6 113.7 85.1 6.90 1739 380 205 392 69 53
6V 4 OPzS 200 204.0 167.0 149.3 115.2 2.20 2703 272 205 392 47 36
6V 5 OPzS 250 255.0 208.6 186.6 143.6 1.90 3175 380 205 392 61 44
6V 6 OPzS 300 307.0 250.5 223.7 172.0 1.60 3846 380 205 392 68 52

Electrolyte density: 1,24 ± 0,01kg/l at 20 °C. All measures and weights are within standard production tolerances. Weight tolerance is ± 5 %. Electrical values are approximative. Technical modifications are reserved without prior notice.


OPzS CELLS

UF_V/Cell 1,80 1,77 1,75 1,67 EN/IEC 60896-11 Dimensions Weight Nr.
Discharging time (h) 10 5 3 1 Ri Isc L W H with acid dry of
Type Ah Ah Ah Ah mΩ A mm mm mm kg kg poles
2 OPzS 100 111 97 85 62 1.48 1350 103 206 420 13.0 8.0 2
3 OPzS 150 160 142 122 89 1.08 1845 103 206 420 15.0 10.0 2
4 OPzS 200 215 187 163 119 0.84 2376 103 206 420 17.5 12.5 2
5 OPzS 250 268 232 204 149 0.69 2887 124 206 420 21.5 15.5 2
6 OPzS 300 321 277 242 177 0.58 343 145 206 420 25.0 17.0 2
5 OPzS 350 393 336 290 212 0.64 3137 124 206 536 29.0 20.0 2
6 OPzS 420 470 403 348 254 0.55 3641 145 206 536 34.0 24.0 2
7 OPzS 490 550 470 406 296 0.48 4169 166 206 536 38.0 27.0 2
6 OPzS 600 685 582 510 370 0.45 4466 145 206 711 46.0 33.0 2
7 OPzS 700 798 681 598 436 0.38 5280 210 191 700 61.0 41.0 4
8 OPzS 800 912 778 683 499 0.33 6035 210 191 711 64.0 45.0 4
9 OPzS 900 1025 875 767 560 0.29 6948 210 233 711 74.0 50.0 4
10 OPzS 1000 1140 972 852 622 0.26 7720 210 233 711 77.0 55.0 4
12 OPzS 1200 1365 1165 1020 745 0.23 8814 210 275 711 91.0 64.0 4
12 OPzS 1500 1645 1410 1220 890 0.23 8605 210 275 861 111.0 80.0 4
14 OPzS 1750 1910 1640 1420 1035 0.19 10536 212 397 837 145.0 98.0 6
15 OPzS 1875 2050 1760 1520 1110 0.18 11289 212 397 837 150.0 104.0 6
16 OPzS 2000 2185 1875 1625 1185 0.17 12042 212 397 837 154.0 109.0 6
18 OPzS 2250 2455 2105 1825 1335 0.15 13506 212 487 837 184.0 126.0 8
20 OPzS 2500 2730 2340 2030 1480 0.13 15007 212 487 837 192.0 137.0 8
22 OPzS 2750 3000 2575 2230 1625 0.13 15941 212 576 837 222.0 149.0 8
24 OPzS 3000 3270 2805 2430 1775 0.12 17390 212 576 837 230.0 160.0 8

Electrolyte density: 1,24 ± 0,01kg/l at 20 °C. All measures and weights are within standard production tolerances. Weight tolerance is ± 5 %. Electrical values are approximative. Technical modifications are reserved without prior notice.
